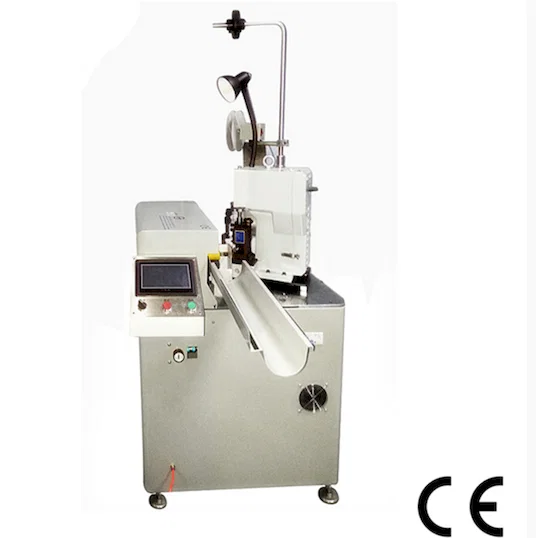

Automatic Twin Wire Crimp Machine | AWG16-28 | 3200mm Cutting

The automatic wire-cutting stripping and crimping machine adopts a procedural control interface with a touch screen LCD, it has an operating system in Chinese and English, is easy to operate, and has stable performance. Fast send wire, cut wire, strip wire and crimp the terminals, high precision, fast speed, front and rear swing arms are both controlled by servo, and ultra-low noise, more stable. The length of sending/cutting/stripping wire, and the delay time of crimping, all can be accomplished by digital configuration.

available wire size	AWG16-AWG28#
Cutting length	45-3200mm( Longer can be customized)
Cutting accuracy	cutting length *0.2%
Stripping length	0.5mm-14mm
Pressure capacity	1.5T
Detection device	no wire; no terminal, insufficient pressure
Voltage	AC220V/50HZ single phase
Air pressure	0.5Mpa
Dimension	750mm*800mm*1700mm
Weight	400kg
