Automatic cable stripping crimping and twisting machine

Features;

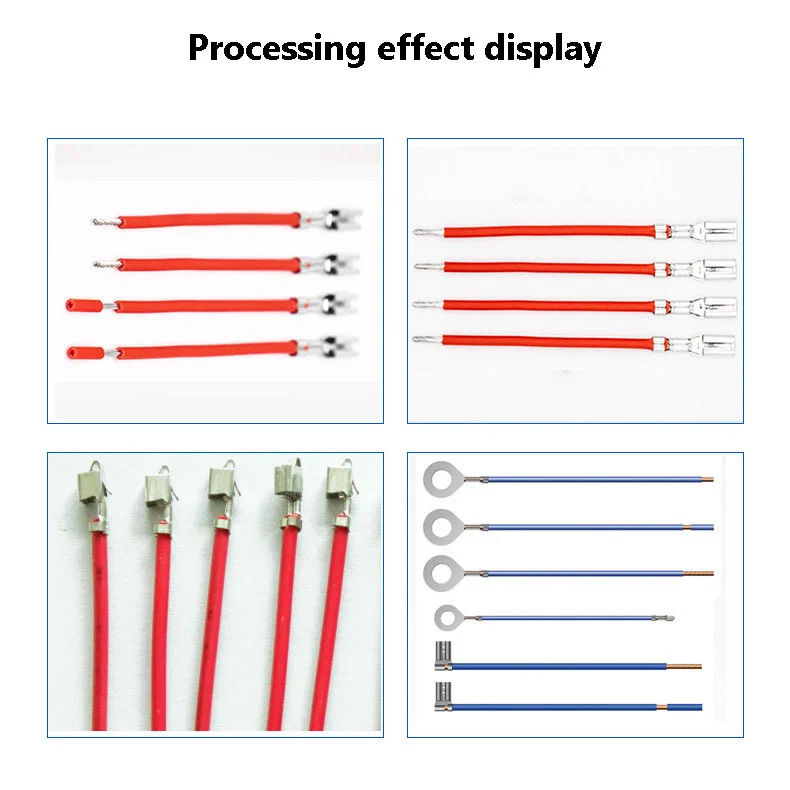

This automatic crimping machine is a fully automatic cable processing machine to process wire from cutting,

stripping, crimping, and twisting completely at once. it is suitable for processing all kinds of electric wires from

AWG14#~AWG28#(can be customized), and crimping reel-type terminals like insulated terminals or non-insulated

terminals. the crimping die is made according to your terminals, different terminals can be pressed by this machine

just replace the crimping die, changeover the crimping die is very quick.

Advantages:

1) from feeding cable, cutting, stripping, crimping, and twisting automatically.

2)Available wire range from AWG 14#~AWG 28# with fast speed and accuracy performance.

3)Available for crimping all kinds of chain-type terminals.

4) Changing the crimping die is very quick and convenient within 3 minutes.

5)Can be equipped with a conveyor for processing long wire.

Function	cutting, stripping, crimping, and twisting
Available wire size	AWG14~AWG28( can be made as your request)
Cutting length	45mm-9999.9mm
Stripping length	0-12mm
Cutting accuracy	0.5mm+cutting length*0.2%
Capacity	4000-5000pcs/h
Crimping force	2T
Power supply	220V 50HZ/60HZ
Air pressure	0.5-0.7mPa
