Automatic Wire Crimping Machine

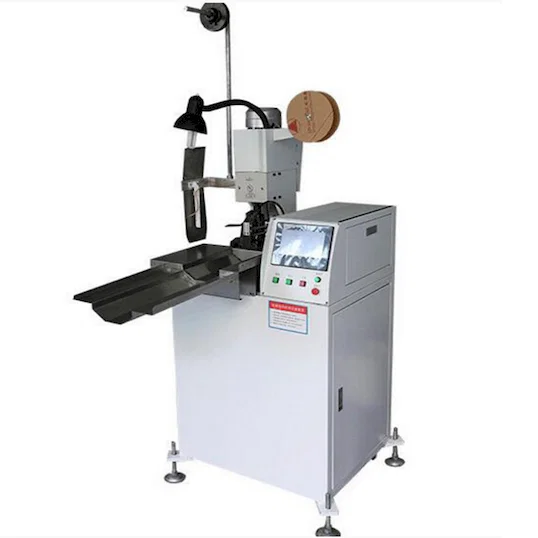

Automatic Wire Cut Strip Crimp Machine for Cable Harness WPM-151
Model No. WPM-1511,534 views
Specifications
- Voltage
- AC220V/50HZ
- Function
- Wire cutting, stripping, crimping, twisting
- Productivity (500mm)
- 8000pcs/h (no twisting); 6200pcs/h (twisting)
- Wire Range
- AWG#34—AWG#18
- Cutting Length
- 25mm-9999mm
- Stripping Length
- 0.1mm—25mm
- Crimping Force
- 1.5Ton
- Twisting Length
- 3mm—20mm
- Dimension
- 1060W*600L*1380H(mm)
- Weight
- 300kg
Full automatic cable crimping machine WPM-151, Fully Automatic Terminal Crimping Machine, Molex Terminal Crimping Machine, Electrical Connector Wire Cut Strip Crimping Machine
1. Adopt imported parts, cutting, stripping( half stripping), crimping, and twisting automatically, simple to operate, precise and stable
2. Stripping length, cable pressing wheel, and cutting depth are controlled by a touch screen, easy and quick.
1. Adopt imported parts, cutting, stripping( half stripping), crimping, and twisting automatically, simple to operate, precise and stable
2. Stripping length, cable pressing wheel, and cutting depth are controlled by a touch screen, easy and quick.
3. Easy and quick to adjust technical characteristics.
| Voltage | AC220V/50HZ |
| Function | Wire cutting, stripping, crimping, twisting |
| Productivity (500mm) | 8000pcs/h(no twisting)；6200pcs/h (twisting) |
| Wire Range | AWG#34—AWG#18 |
| Cutting length | 25mm-9999mm |
| Cutting accuracy | Adjustable |
| Stripping length | 0.1mm—25mm |
| Crimping force | 1.5Ton |
| Twisting length | 3 mm—20mm |
| Auxiliary device | Sending device, terminal conveyor, garbage collection |
| Testing Equipment | Terminal and wire input testing |
| Dimension | 1060W*600L*1380H(mm) |
| Weight | 300kg |
