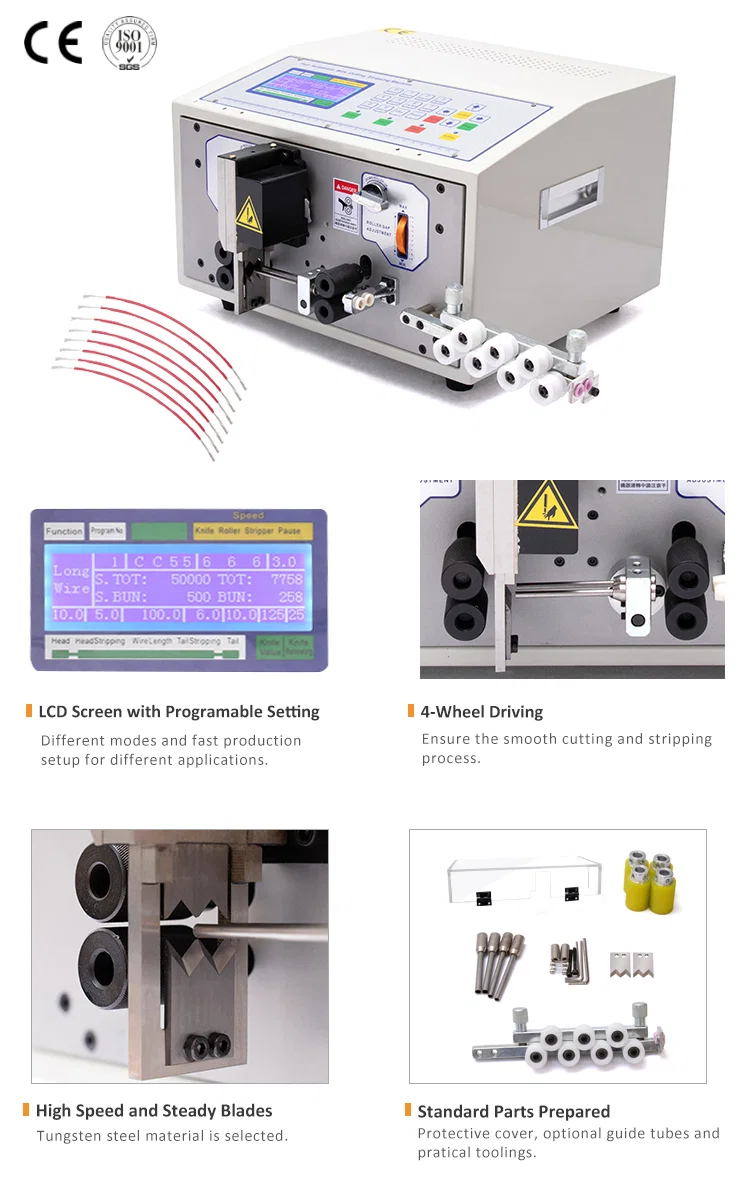

Automatic Double Wire Stripping Machine for Cable Harness WPM-09F

Double feeding wire stripping machine, Double line Wire Cutting Stripping Machine, Electrical Wire Stripping Machine, Cable Cutting Stripping Machine
Features:
Automatic Full Computer Wire Stripping Machine
Adopt advanced automation technology from Japan, and Taiwan.
It is a kind of numerical control equipment.

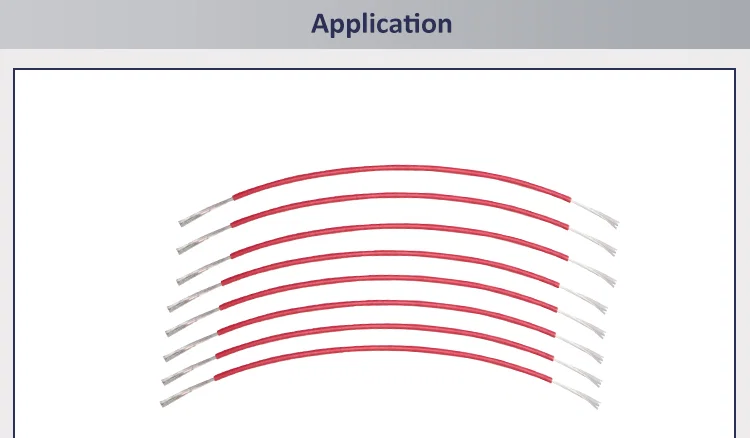

Apply for:
Widely used in the electronics industry, the city has electrical appliances, motors, lamps, toys,
and other various products of wire processing.
Optimal stripped wire PVC/Teflon/silica gel line /. Glass fiber, etc.
Specification:
Available Wire Cross-Section Range: 0.1～2.5mm2, double wires feeding and stripping
Conduit Diameter: ￠6mm
Cutting Length: 1～9999mm
Cutting tolerance: ± (0.002 × L) (Cutting length)
Stripping Length: Head 0~35mm, tail 0~15mm
Middle Stripping Section: Max 11
Speed: 5000-10000pcs/h
Display Way: English LCD
Drive Mode: 4 Drives
Blade Material: Hard tungsten steel
Appropriate Wire: Electrical wires, PVC/Silica gel line/Glass fiber cables
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 200W
Measurement: 390X350X255mm
Weight: 32kg
