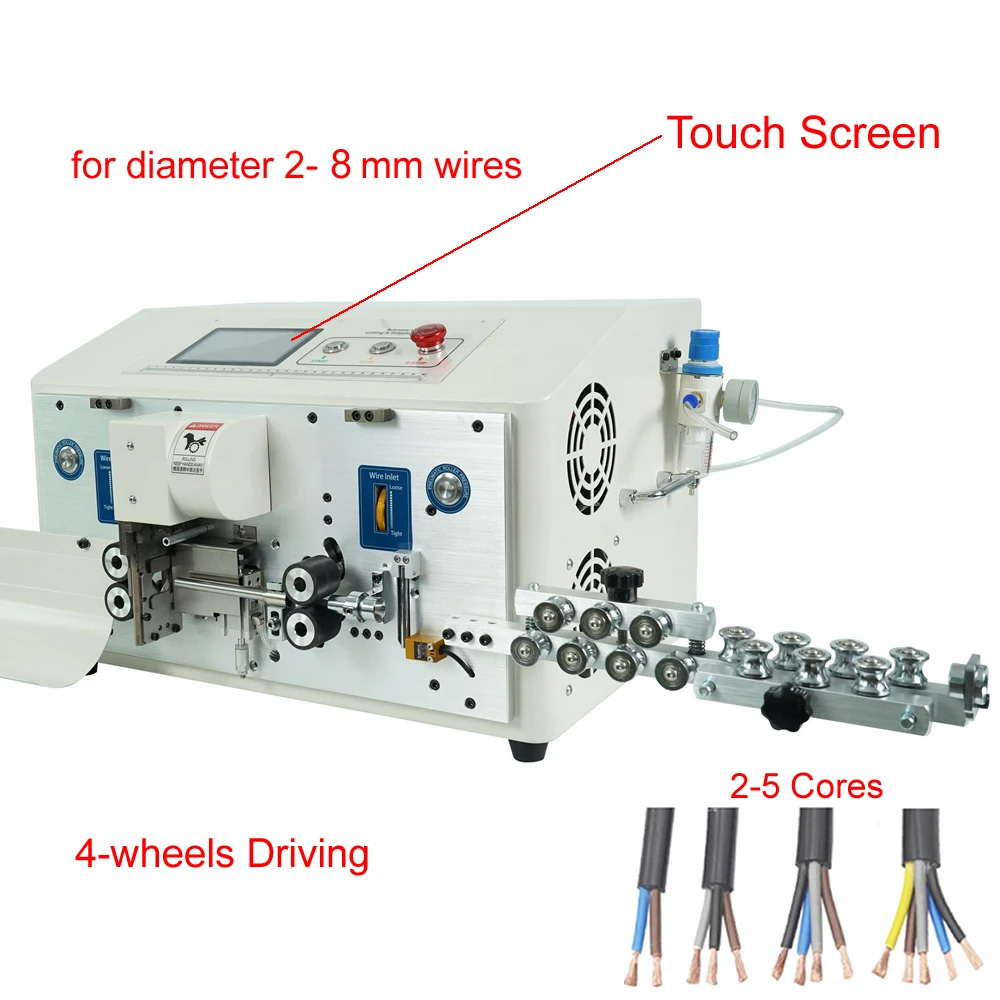

Automatic 2-8mm Multi-Core Wire Stripping & Cutting Machine WPM-YHT6

The WPM-YHT6 is a high-performance, fully automatic wire stripping and cutting machine specifically designed for processing double round sheath cables with 2, 3, 4, or 5 cores. This robust machine efficiently strips the outer sheath and inner cores of wires with an outer diameter ranging from 2mm to 8mm.

Featuring a user-friendly 5-inch touch screen interface with switchable Chinese and English languages, operation is intuitive and precise. The machine boasts a powerful 350W motor and supports both 110V and 220V power supplies at 50HZ/60HZ.

Key Technical Parameters:

Machine Dimension: 560mm×460mm×365mm
Electrical Connection: 110V/220V 50HZ/60HZ
Weight: 40KG
Power: 350W
Operation Interface: 5 inch (Chinese and English switching touch screen display)
Wire Cross Section: ￠2-8mm (Round sheath wire)
Number of Wire Cores Processed: 2 cores, 3 cores, 4 cores, 5 cores
Max Conduit Inside Diameter: ￠9mm
Length Accuracy: ± 0.2mm
Air Pressure: 0.8Mpa
Wire Length Range: Max 100m
Outer Wire Strip Length: Front end (Full stripping): 1-150mm; Rear end (Full stripping): 1-40mm
Inner Core Strip Length: Front end: 0-20mm; Rear end: 0-20mm
Blade Material: High-speed steel
Transport Speed: (For L=300mm) 1500-3000 pcs/hour
Driving Mode: 4-wheels driving (silent hybrid stepper motor, 0.1mm forward per step)

The WPM-YHT6 ensures high precision with a length accuracy of ±0.2mm and offers flexible stripping lengths for both the outer sheath and inner cores. Its four-wheel drive system, powered by a silent hybrid stepper motor with 0.1mm per step advancement, guarantees stable and efficient wire feeding. Built with durable high-speed steel blades, this machine delivers consistent and reliable performance for high-volume wire processing.
