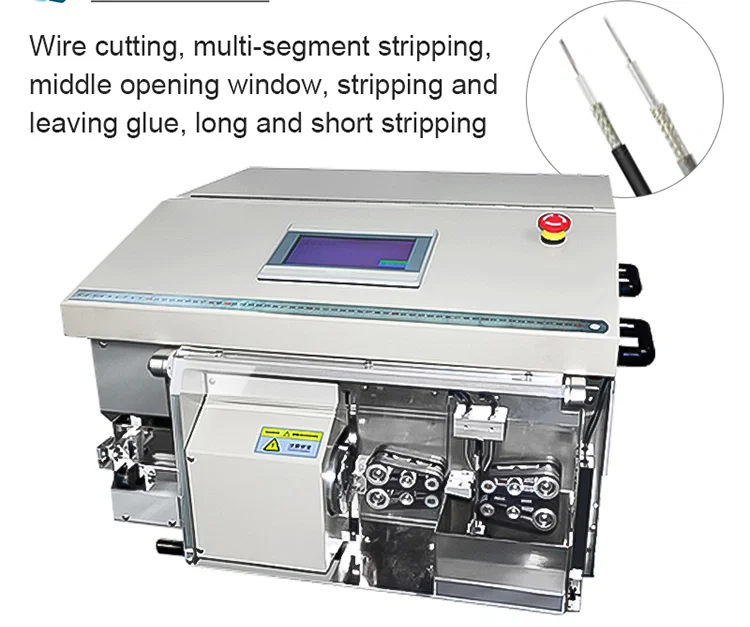

Automatic Coaxial Cable Cutting & Stripping Machine WPM-9600S

Model No. WPM -9600S2,339 views

Specifications

Model Number: WPM-9600S
Wire Capability OD: 0.80-5.5mm
Maximum Strip Left End: 40mm
Maximum Strip Right End: Unlimited
Maximum Strip Layers: 4 layers
Power Supply: 220V/50HZ
Power: 380W
Cutting Length: 70mm-9999mm

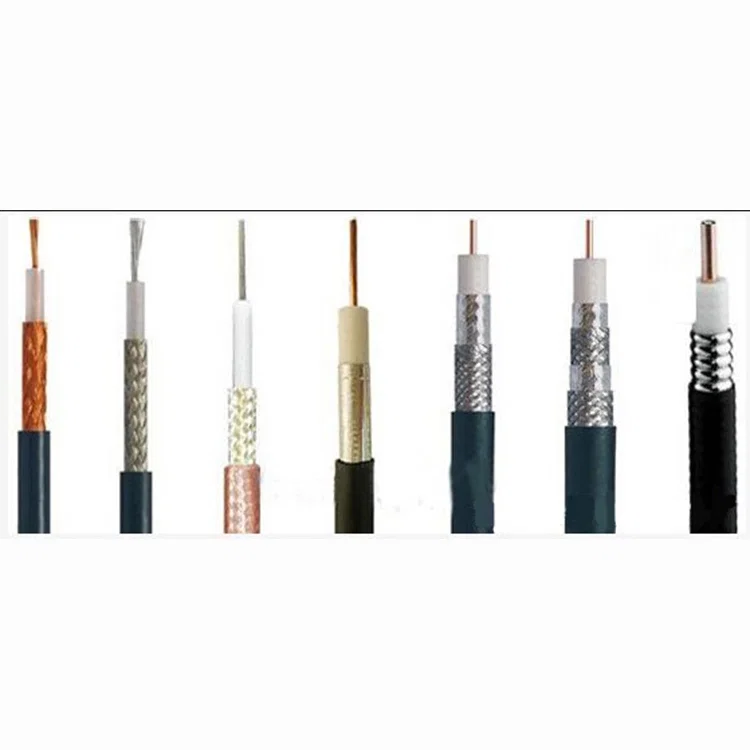

Material Range: Coaxial cable
Data Storage: 60 parameters
Drive Mode: Motor, ball screw drive

Inquiry Now WhatsApp

sales@cablecutting.net

Headline: Automate Coaxial Cable Cutting & Stripping Processing: The High-Efficiency WPM-9600S Cutting and Stripping Machine

Introduction:

Introducing the Coaxial Cable Cutting and Stripping Machine WPM-9600S, a highly advanced and efficient solution for automating the precise cutting and stripping of coaxial cables, special radix wires, and similar materials. This sophisticated Coaxial Cable Cutting and Stripping Machine is engineered to effortlessly process various cable types, offering unparalleled speed and accuracy for your cable preparation needs. If you are seeking a high-performance cable stripping machine that can handle demanding coaxial applications, the WPM-9600S is the ideal choice.

Key Features and Benefits:

Automated Cutting and Stripping for Coaxial Cables and Radix Wires: This Coaxial Cable Cutting and Stripping Machine is specifically designed for the automated processing of coaxial cables and special radix wires, streamlining your workflow and increasing productivity.

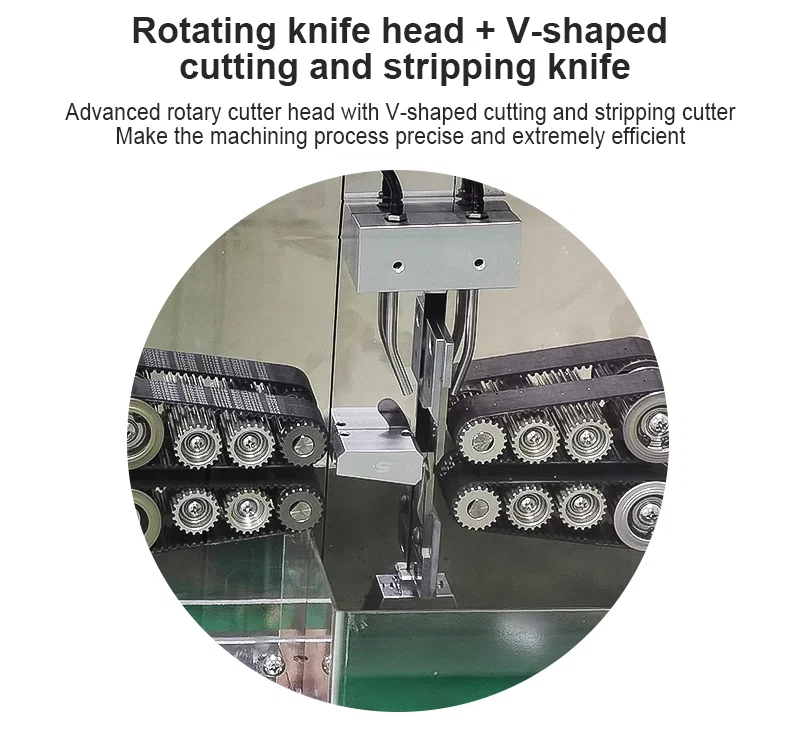

Advanced Rotary Rest Technology for Enhanced Precision and Speed: Utilizing the most advanced rotary rest technology, the WPM-9600S significantly enhances both cutting and stripping accuracy and speed. Experience faster processing times and consistently precise results with this innovative design of this Coaxial Cable Cutting and Stripping Machine.

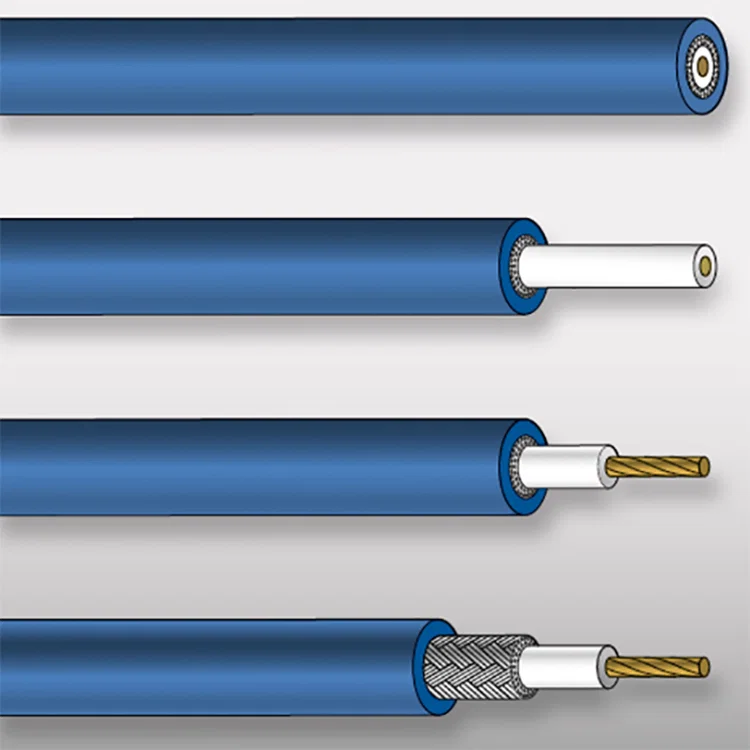

Axis Clamping and Rotating Tool Angle Method for Multi-Layer Stripping: Equipped with a specific axis clamping device and a rotating tool angle method, this machine can strip up to 4 layers (text mentions up to 9F, likely layers, but spec says 4) without blade changes. Simplify complex multi-layer stripping processes and optimize efficiency.

Controller-Based Size and Wire Adjustment for Material Versatility: Easily adjust the machine for different cable sizes and outer wire diameters through the user-friendly controller. Process a variety of coaxial cables and radix wires without complicated mechanical adjustments using this adaptable Coaxial Cable Cutting and Stripping Machine.

Digital Display for Diameter Indication: The integrated digital display clearly indicates canning and cutting wire diameter, ensuring precise setup and monitoring for optimal cutting and stripping performance.

High Productivity (500-700 pcs/h): Boost your output with impressive productivity rates. The WPM-9600S is capable of processing 500-700 pieces per hour, depending on cable type and complexity, significantly increasing your throughput as an efficient cable stripping machine.

Wide Wire Capability (0.80-5.5mm OD): Accommodate a broad range of coaxial cable outer diameters from 0.80mm to 5.5mm, providing versatility for various cable specifications and application requirements.

Generous Max Stripping Length (40mm Left End, Unlimited Right End): Handle diverse stripping lengths with a maximum strip length of 40mm on the left end and virtually unlimited stripping length on the right end, offering flexibility for varied cable preparation tasks.

Durable Tungsten Steel and High-Speed Steel Blades: Equipped with robust blades made from tungsten steel (rotating cutters) and high-speed steel (peeling blades), ensuring sharp, clean cuts and long-lasting performance, vital for a reliable wire cutting and stripping machine.

Large Data Storage Capacity (60 Parameters): Store up to 60 parameter sets for different cable types and stripping configurations. Quickly switch between jobs and minimize setup time with this convenient data storage feature.

Motor and Ball Screw Drive for Smooth and Precise Operation: The motor and ball screw drive mechanism ensures smooth, precise, and reliable operation, contributing to the overall accuracy and efficiency of the Coaxial Cable Cutting and Stripping Machine.

Technical Specifications:

Feature	Specification
Model	WPM-9600S
Keyword Focus	Coaxial Cable Cutting and Stripping Machine
Wire Capability (OD)	0.80-5.5mm
Max. Strip Length (Left End)	40mm
Max. Strip Length (Right End)	Unlimited
Max. Stripping Layers	4 Layers (Up to 9F mentioned in text)
Power Supply	220V/50HZ (P:380W)
Cutting Off Length	70mm-9999mm
Material Range	Coaxial Cable, Special Radix Wires
Data Storage	60 Parameters
Drive Mode	Motor, Ball Screw Drive
Knife Blades	2 Rotating Cutters (Tungsten Steel), 4 Peeling Blades (High-Speed Steel)
Productivity	500-700 pcs/h
Weight	100kg
Size (Dimensions)	800700440mm
Working Condition	0-50 degrees, Dry Workshop

Applications:

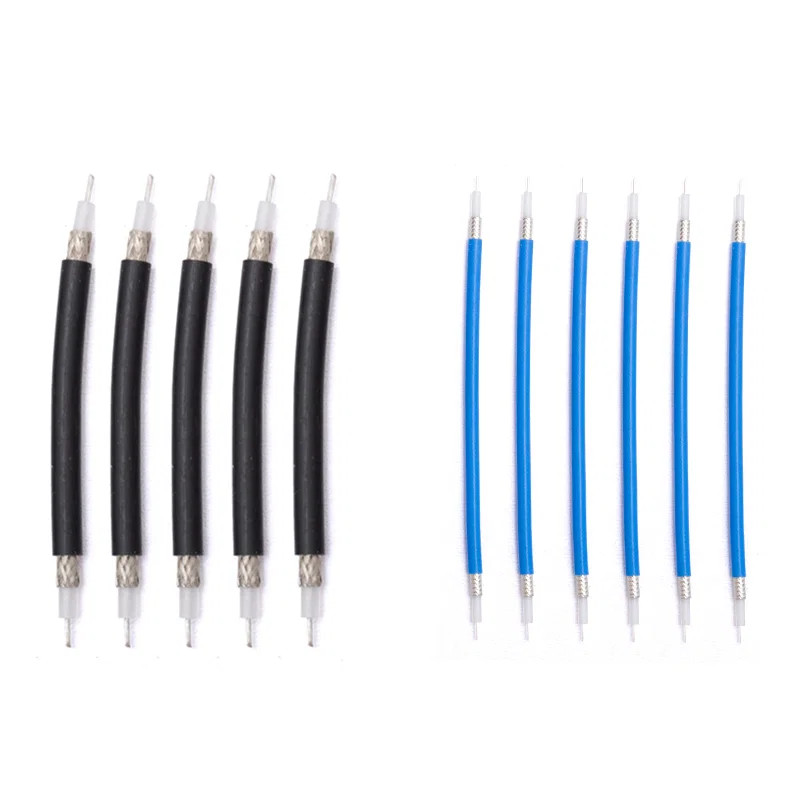

The Coaxial Cable Cutting and Stripping Machine WPM-9600S is widely used in industries requiring high-precision and efficient processing of coaxial cables and similar wires, including:

Telecommunications Industry: Preparing coaxial cables for network infrastructure, cable TV, and communication systems.
Electronics Manufacturing: Processing coaxial cables for electronic devices and high-frequency signal transmission.
Aerospace and Defense: Stripping coaxial cables used in aerospace wiring and defense communication systems.
Cable Assembly Houses: High-volume processing of coaxial cables for various industries and applications.
Any application demanding automated, precise cutting and stripping of coaxial cables.

Conclusion:

Upgrade your coaxial cable processing workflow with the Coaxial Cable Cutting and Stripping Machine WPM-9600S and experience a significant leap in efficiency, precision, and automation. This robust and reliable machine is designed to streamline your operations, reduce labor costs, and deliver consistently superior cable preparation results. Contact us today to learn more and request a personalized quote to transform your coaxial cable processing workflow!
