Tape Winding Machine

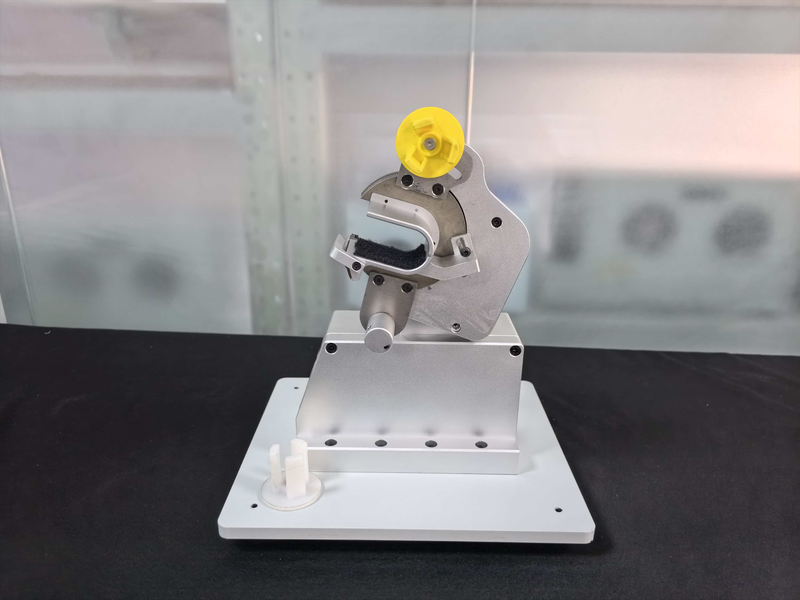

Vertical Cloth Winding Machine for 3-25mm Wire, 5-25mm Tape JW-25W

Model No. JW-25W2,452 views

Specifications

Machine Model: JW-25W
Machine Type: Vertical Cloth Winding Machine
Voltage: 100-240V 50/60HZ
Machine Dimensions: W300*L250*H330mm
Net Weight: 10kg
Winding Mode: Spiral Winding
Applicable Tapes: PVC, Vinyl, Flocked Cloth, Cloth-Based Tape, High-Temperature Tape, Ceramic Tape
Applicable Wire Diameter: 3-25mm
Tape Width: 5-25mm
Maximum Tape Outer Diameter: 110mm
Tape Inner Hole Size: 38mm/32mm optional, others customizable
Winding Direction: Left and Right
Speed: 1-9 Gears (Adjustable)
Spot Winding Turns: 1-99 Turns (Adjustable)

Inquiry Now WhatsApp

sales@cablecutting.net

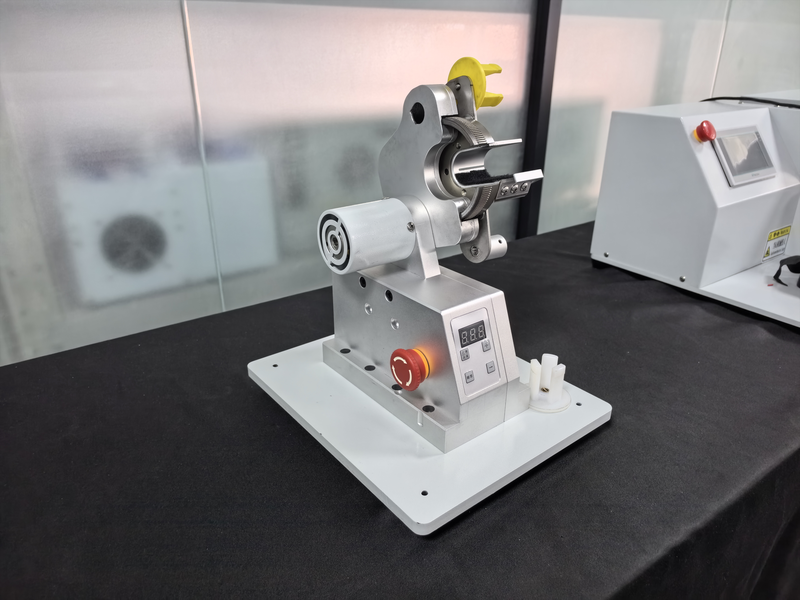

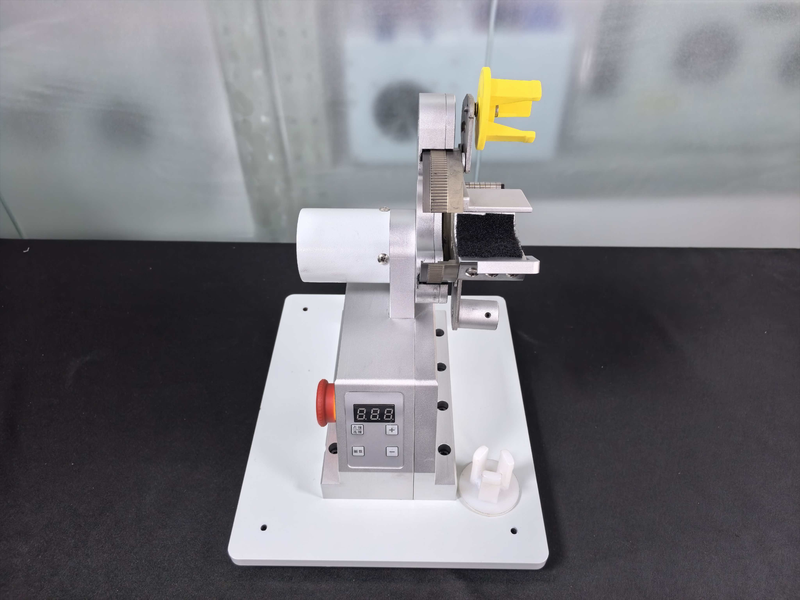

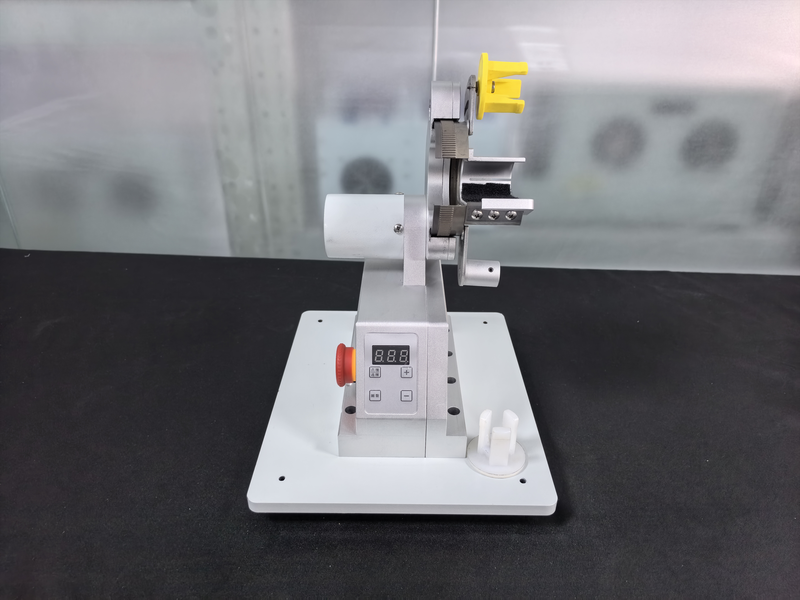

JW-25W Vertical Cloth Winding Machine

Machine Overview

The JW-25W is a high-performance vertical cloth winding machine designed for efficient and flexible wire harness winding. It features a compact vertical structure, spiral winding method, and user-friendly operation, making it particularly suitable for short wire and multi-branch wire winding scenarios. Its small size and lightweight design ensure easy placement and mobility in various workshop environments.

Technical Parameters

Machine Model: JW-25W
Machine Type: Vertical Cloth Winding Machine
Voltage: 100-240V 50/60HZ
Machine Dimensions: W300*L250*H330mm
Net Weight: 10kg
Winding Mode: Spiral Winding
Applicable Tapes: PVC, Vinyl, Flocked Cloth, Cloth-Based Tape, High-Temperature Tape, Ceramic Tape, etc.
Applicable Wire Diameter: 3-25mm
Tape Width: 5-25mm
Maximum Tape Outer Diameter: 110mm
Tape Inner Hole Size: 38mm/32mm optional, others customizable
Winding Direction: Left and Right
Speed: 1-9 Gears (Adjustable)
Spot Winding Turns: 1-99 Turns (Adjustable)

Machine Features

Compact & Flexible Design: With small volume and light weight, it occupies little space and is easy to move, adapting to different workshop layouts.

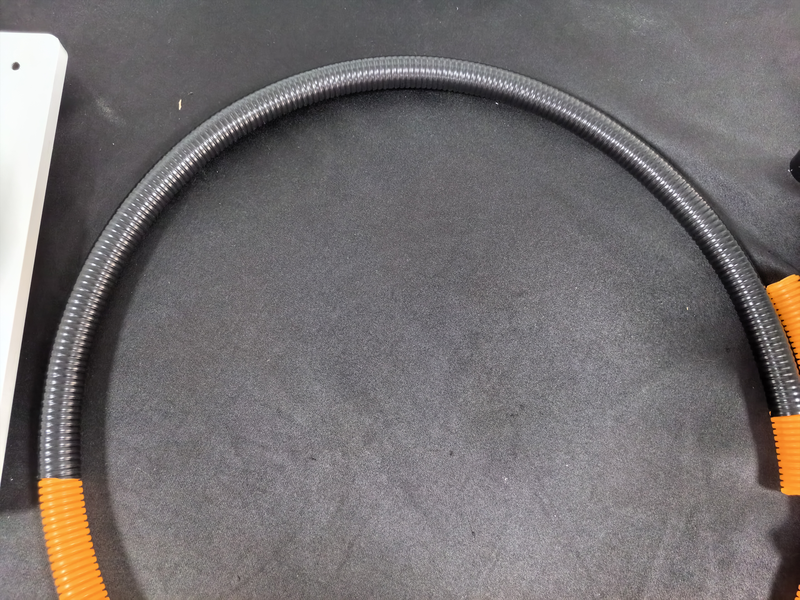

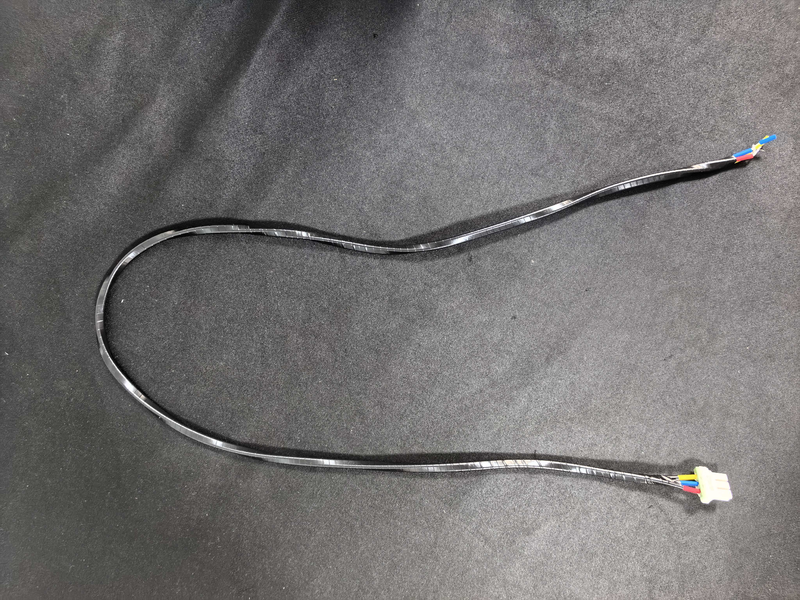

Wide Application: Specifically suitable for short wire winding and multi-branch wire winding, meeting diverse production needs.
Easy Operation: Simple gear adjustment for speed and spot winding turns, lowering the learning threshold for operators.
Strong Compatibility: Compatible with various types of tapes and a wide range of wire diameters, enhancing production versatility.
