Metal Shielding Mesh Fusing Machine JW-SM10

Product Overview

The JW-SM10 Metal Shielding Mesh Fusing Machine is an advanced industrial solution engineered specifically to cut and strip metal mesh sheaths and shielding nets. Utilizing a highly efficient thermal fusing principle, this machine perfectly melts the shielding net while ensuring the delicate inner core wire remains completely undamaged. With a rapid cutting efficiency of 1 second per piece, it is the ideal upgrade for high-volume wire processing lines.

Technical Specifications

Parameter	Specification
Voltage	220V 50Hz
Working Voltage	24V
Working Power	15KW
Air Pressure	0.2 - 0.4 MPa
Dimensions	400 x 460 x H350 mm
Weight	40 kg
Cutting Wire Diameter	1 - 10 mm
Cutting Length	2 mm to infinite length
Cutting Efficiency	1 second / piece

Operation Guide

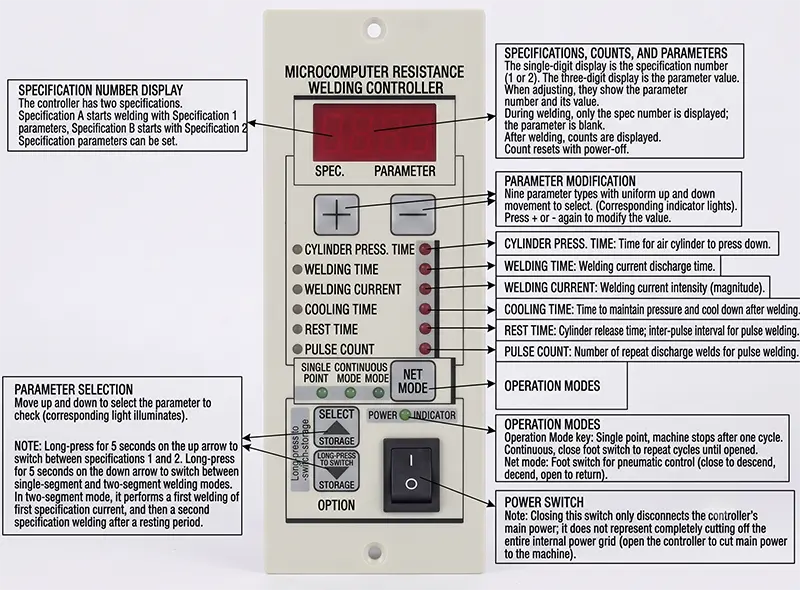

The JW-SM10 features a user-friendly microcomputer resistance welding controller.

Generally, operators only need to adjust the welding current.

Press the up and down triangle keys to align the red indicator light with the welding current position.

Next, press the plus (+) or minus (-) keys to adjust the parameter value.

Once adjusted, there is no need to manually confirm; the system automatically switches to the adjusted welding current value.

Important Precautions & Maintenance

Troubleshooting Sparks: If large sparks occur during welding, it is generally not a component failure. Carefully adjust the welding parameters, air pressure, and cylinder strokes based on the material properties and process requirements to achieve the best welding effect.

Power Safety: When repairing or disassembling the machine, please turn off the main power supply. A voltage drop remains inside the machine even when the controller power switch is disconnected.

Professional Servicing: To guarantee personal and machine safety, non-professionals must not disassemble, repair, or modify this machine.

Environmental Care: In damp weather environments, pay attention to ventilation. If necessary, perform air-drying treatments on the machine.

Child Safety: Please do not let children near this machine.

Weather Precautions: During severe lightning weather, it is recommended to turn off the main power and stop the machine to avoid unnecessary economic loss.

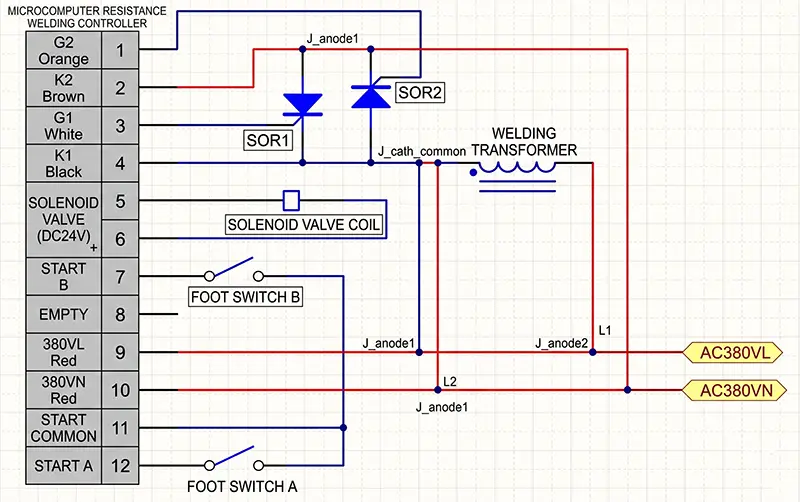

Wiring Accuracy: Wire strictly according to the wiring diagram; incorrect wiring may burn out the control box and machine components.

Grounding: Ensure the outer casing has a good grounding connection.
