Automatic Enameled Copper Wire Stripping Machine 0.35-5mm WPM-6P

1. This model is usually used for thick copper wire (the stripping effects will be the best between 0.35-5mm diameter)
2. The stripping head consists of four sticks made of imported tungsten steel with centripetal working;
3. Widely used to strip enameled wires especially for the needs of removing enamel till the root of wire;
4. Suitable for various enamels removal;
5. Taper of the four sticks is adjustable, and this would help the scrap discharge
6. Easy to operate and adjust: rotating the screw to adjust for different enameled wire diameters;
7. Safety shield is equipped with this machine

Specification:

Model	WPM-6P
Copper Wire Diameter	About 0.35-5mm
Dimension	280*200*150MM
Weight	5.5kg
Voltage	220V, 50HZ
Power	120W
Rotation Rate	2800r/Min
Head Cutting Material	Imported Tungsten Cemented Carbide
Stripping Length	5MM-70MM

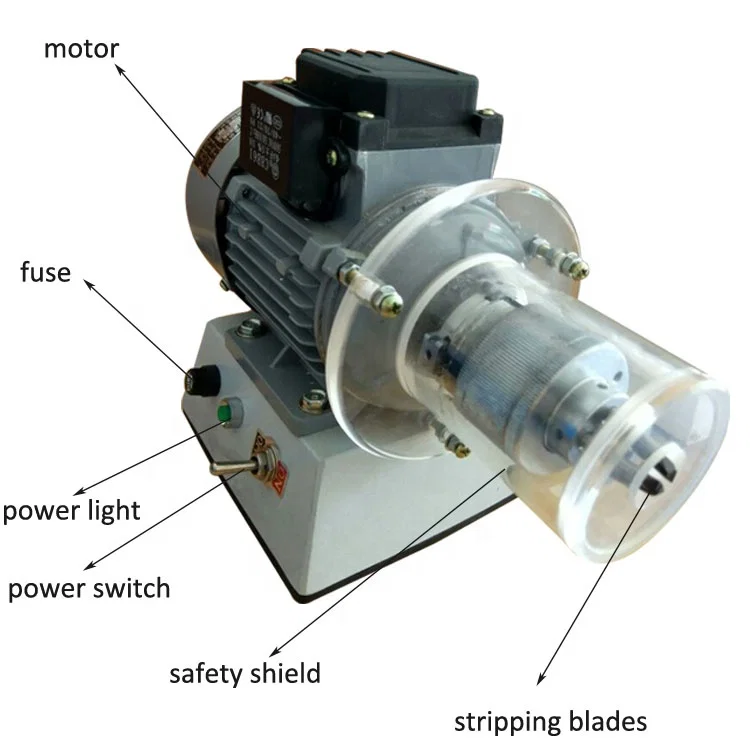

Here are the main parts of the copper wire stripping machine:

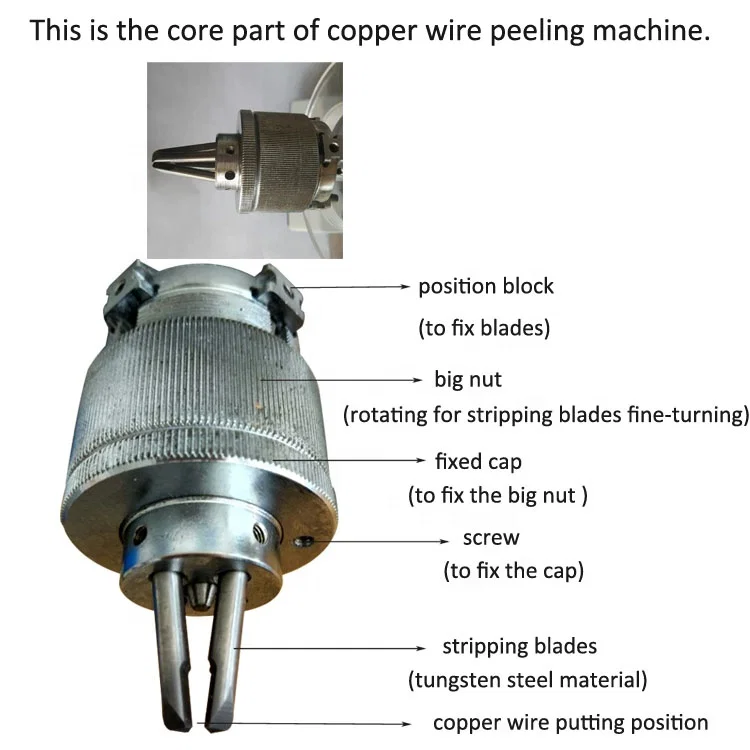

Here are the core parts of this copper wire enamel-removing machine: the stripping head

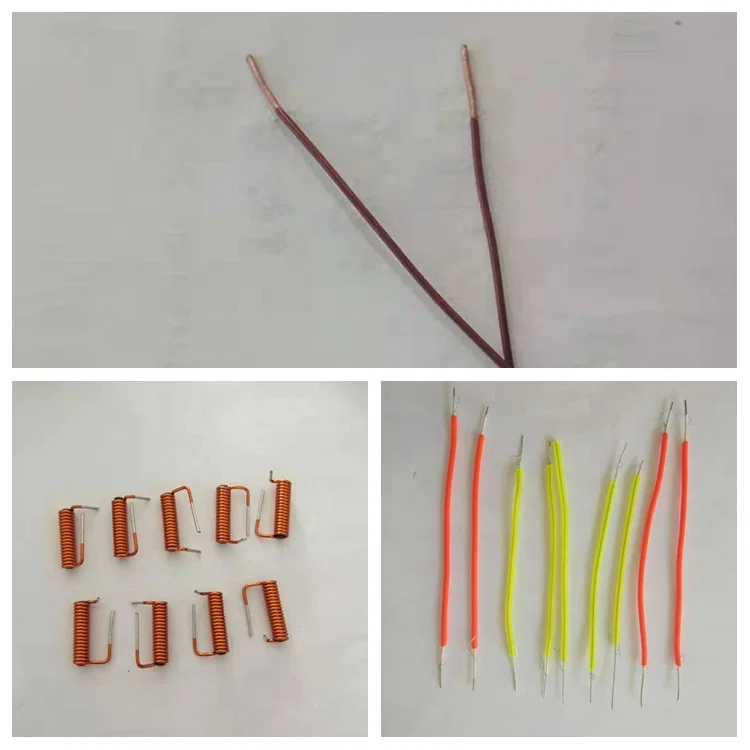

The following picture is for some enamel removal samples, pls have a see:
