Cable Coiling & Binding
Semi-Automatic Wire Coiling & Binding Machine WPM-212A
Model No. WPM-212A1,119 views
Specifications
- Model Number
- WPM-212A
- Operation Type
- Semi-Automatic
- Control System
- PLC or Controller with Touch Screen
- Compatible Wires
- AC cable, DC cable, data wire, cable, other electric wires, twisted bundles
- Wire Head Configuration
- One side or two sides
- Production Monitoring
- Real-time quantity display, carton quantity setting with automatic alert/shutdown
- Safety Features
- Operator warning system for malfunctions
wire coiling and binding machine, Wire Twist Tie Machine, Cable Coil Winding, And Binding Machine, Cable Coil Binding Machine, Automatic Wire Twist Tie Machine
Features:

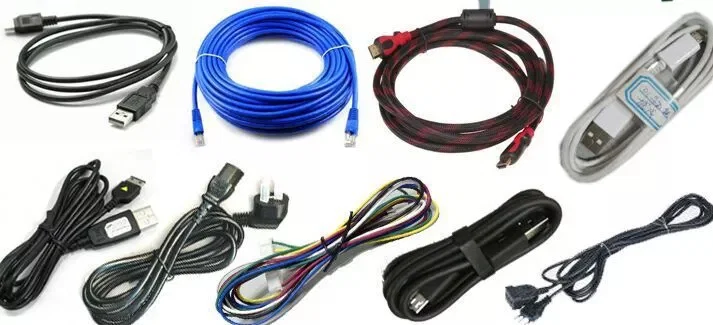

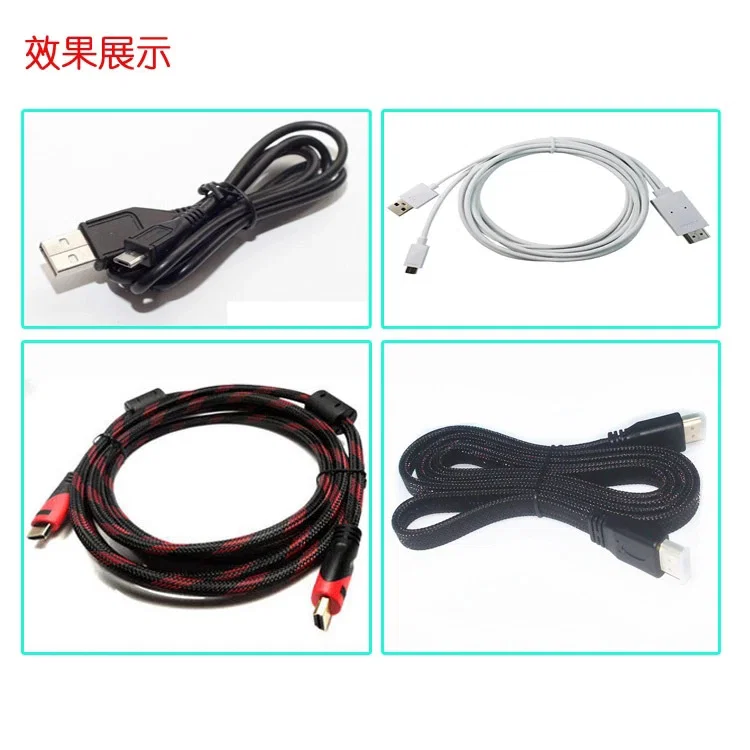

1. Semi-automatic winding& bunding machine takes advanced technology and precision manufacturing, winding and tying AC cable, DC cable, data wire, cable, other electric wires, and twisted bundles. Wire heads can be on one side or two sides. Winding and tying are accomplished at one time.
2. This work efficiency is three to four times faster than working by hand. Ending the history of enormous labor and injuring fingers as well as saving the high cost of the proprietor.
Characters:
1. The machine is controlled by PLC or controller and touch screen display. Speed of winding cable, several circles can be set up at random according to users’ requirements.
2. This machine can show the actual production quantity at any time, and also set up the quantity of each carton. When the quantity range setting quantity, the machine will automatically alert and shut down.
3. When something wrong during work, the machine warns operators immediately.
Model Winding range* 50-200mm 50-200mm 50-250mm 50-300mm Binding range* 8-30mm 5-30mm 18-45mm 40-80mm Tie length 65-130mm 75-140mm 120-190mm 200-300mm Twist shape Round, long, 8shape Round, long, 8shape Round, long, 8shape Round, long, 8shape Available wire AC cable, DC cable, data line, video cable, other electric wires AC cable, DC cable, data line, video cable, other electric wires AC cable, DC cable, data line, video cable, other electric wires AC cable, DC cable, data line, video cable, other electric wires Length accuracy ±(0.002*L) mm ±(0.002*L) mm ±(0.002*L) mm ±(0.002*L) mm Productivity 66-75 times/min 66-75 times/min 66-75 times/min 66-75 times/min Noise level <70dBA <70dBA <70dBA <70dBA Electrical connection AC 220/110V/50/60HZ AC 220/110V/50/60HZ AC 220/110V/50/60HZ AC 220/110V/50/60HZ Operation interface Touch screen Touch screen Touch screen Touch screen Machine dimension: 485*456*315mm 455*456*315mm 485*435*340mm 550*610*420mm Weight: 45kg 42kg 52kg 65kg Package: Wooden case Wooden case Wooden case Wooden case
