Semi-Auto Crimping Machine

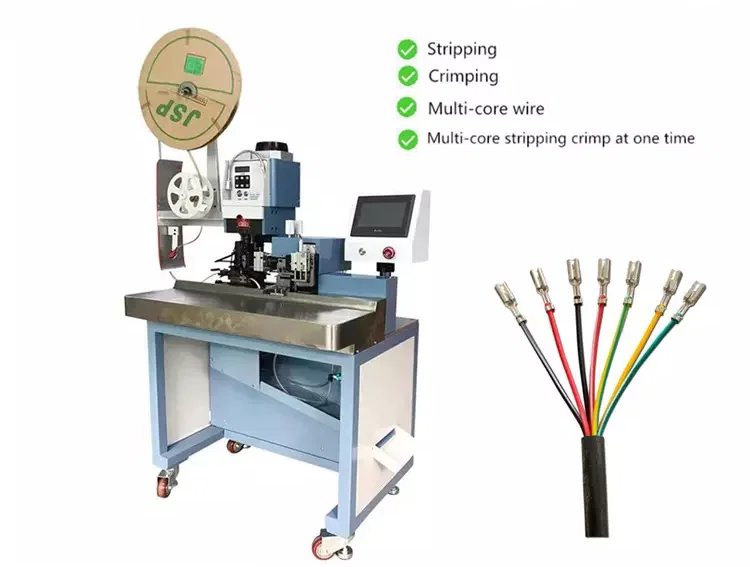

Automatic Multi-Core Cable Stripping & Ferrule Crimping Machine WPM-32

Model No. WPM-322,643 views

Specifications

Model Number: WPM-32
Cable Type: Multiple conductor cable, flat cable
Cable Outer Diameter: 1.3 - 32 mm (0.052 - 1.259 inches)
Conductor Size: 30 - 16 AWG
Conductor Numbers: 2 - 20
Crimping Force: 1.5 T
Productivity: 3600 pcs/h
Power Supply: 110, 220 V (50 - 60 Hz)
Power: 750 W
Dimension: 800 * 600 * 1250 mm (31.50 * 23.62 * 49.21 inches)
Net Weight: 145 kg (319.67 lb)

Inquiry Now WhatsApp

sales@cablecutting.net

Wire Stripping Crimping Terminal, Crimping Terminal Machine, Cable Strip And Crimp Equipment, Multi-core Cablestripping Crimping Machine, Cable Inner Wires Stripping Crimping Machine, Inner Wires Stripping Crimping Machine

Headline: Revolutionize Multi-Core Cable Processing with the WPM-32: The Ultimate Sheath Cable Strip and Ferrule Crimp Machine

Introduction:

Tired of inefficient and noisy multi-core cable processing? The WPM-32 Multi-core Cable stripping Crimping Machine is here to transform your production line. This advanced Ferrule Crimp machine is specifically engineered for high-precision processing of multi-conductor sheathed cables, streamlining your operations and boosting productivity. Designed as a cutting-edge Cable Strip And Crimp Equipment, the WPM-32 seamlessly integrates Cable Inner Wires Stripping Crimping Machine and Inner Wires Stripping Crimping Machine functionalities, providing a complete solution for your multi-core cable needs. Say goodbye to traditional terminal machines and hello to a new era of efficiency with this innovative Crimping Terminal Machine.

Key Features and Benefits:

Specialized for Multi-Core Sheathed Cables: The WPM-32 is expertly designed to process the core wires of multi-conductor sheathed cables, making it the ideal solution for complex wiring applications. It handles cables with pre-stripped outer jackets, focusing on the critical inner core processing.

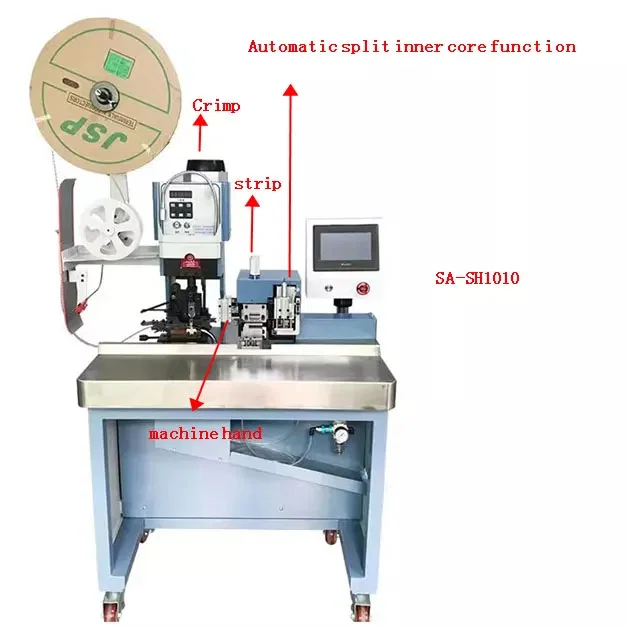

Complete Automation for Enhanced Efficiency: This machine automates wire feeding, Wire Stripping Crimping Terminal processes, and terminal crimping in a continuous and precise manner. Simply position the cable, and the WPM-32 takes care of the rest, significantly improving your multi-core sheathed cable processing efficiency.

Advanced Frequency Conversion and Intelligent Control: Incorporating advanced frequency conversion technology and intelligent control, the WPM-32 offers quieter operation and drastically reduced power consumption – cutting energy use by up to 50% compared to traditional terminal machines.

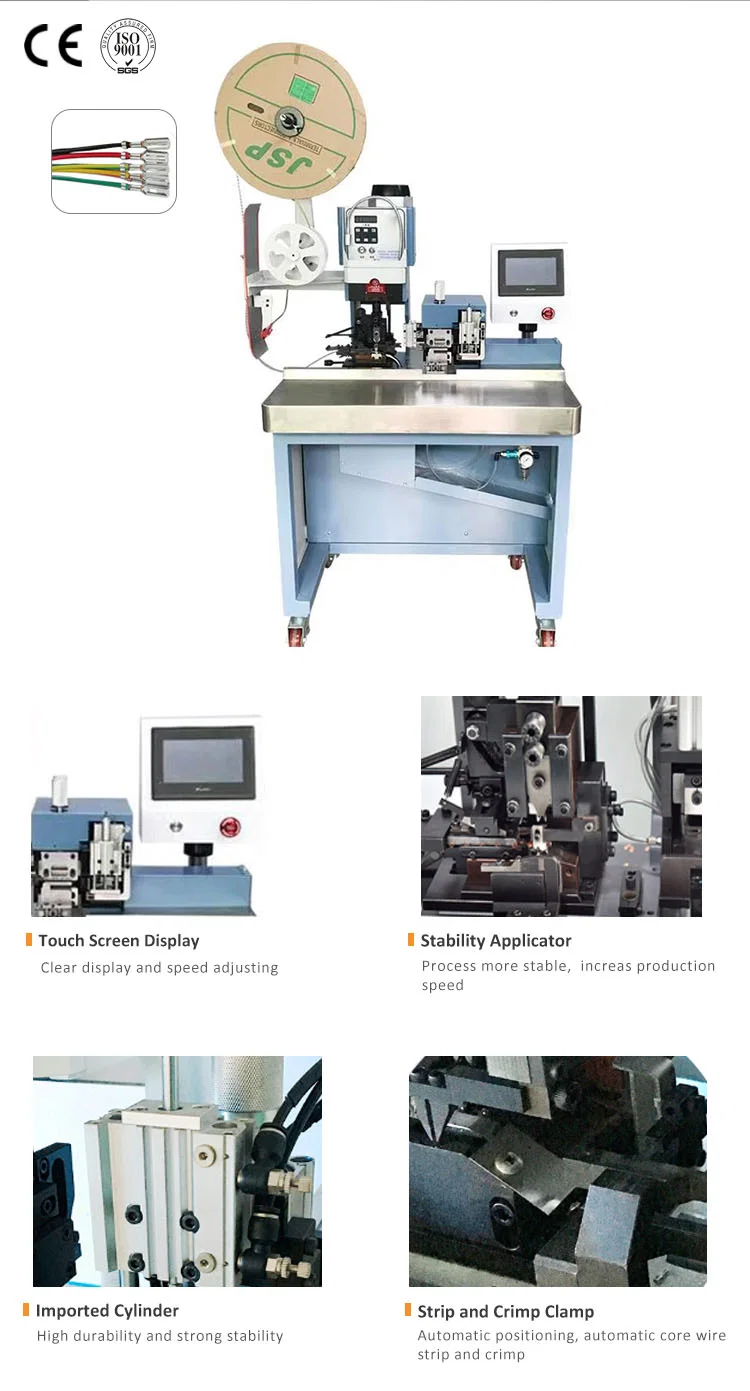

Servo Motor Driven Precision: Driven by servo motors and controlled by a PLC and color touch screen system, the WPM-32 ensures simple operation and exceptionally high processing accuracy. This combination delivers consistent and reliable performance.

Quick and Convenient Installation Mold: Installation and mold changes are faster and more convenient than traditional machines, minimizing downtime and maximizing your production uptime.

Eliminates Traditional Terminal Machine Faults: By avoiding traditional components like clutches and electromagnets, the WPM-32 eliminates common faults associated with older terminal machines, enhancing reliability and reducing maintenance needs.

Versatile Cable Compatibility: The WPM-32 handles a wide range of cable types, including multiple conductor cables and flat cables, with outer diameters from 1.3 to 32 mm (customizable for larger cables).

High Productivity: Achieve impressive productivity rates of up to 3600 pieces per hour (depending on wire type), allowing you to meet demanding production schedules efficiently.

Compact and Robust Design: With a footprint of 800 * 600 * 1250 mm and a net weight of 145 kg, the WPM-32 is robust and space-efficient, fitting seamlessly into your production environment.

Technical Specifications:

Feature	Specification
Model	WPM-32
Keyword Focus	Sheath Cable Strip, Ferrule Crimp machine, Wire Stripping Crimping Terminal, Crimping Terminal Machine, Cable Strip And Crimp Equipment, Multi-core Cablestripping Crimping Machine, Cable Inner Wires Stripping Crimping Machine, Inner Wires Stripping Crimping Machine
Cable Type	Multiple conductor cable, flat cable, etc.
Cable Outer Diameter	1.3 - 32 mm (0.052 - 1.259 inches) (customizable)
Conductor Size	30 - 16 AWG
Conductor Numbers	2 - 20 (depending on cable type)
Stripping Length	Depends on conductor size
Crimping Force	1.5 T
Applicator	OTP
Productivity	3600 pcs. /h (depending on wire type)
Power Supply	110, 220 V (50 - 60 Hz)
Power	750 W
*Dimension (L W * H)**	800 * 600 * 1250 mm (31.50 * 23.62 * 49.21 inches)
Net Weight	145 kg (319.67 lb)

Applications:

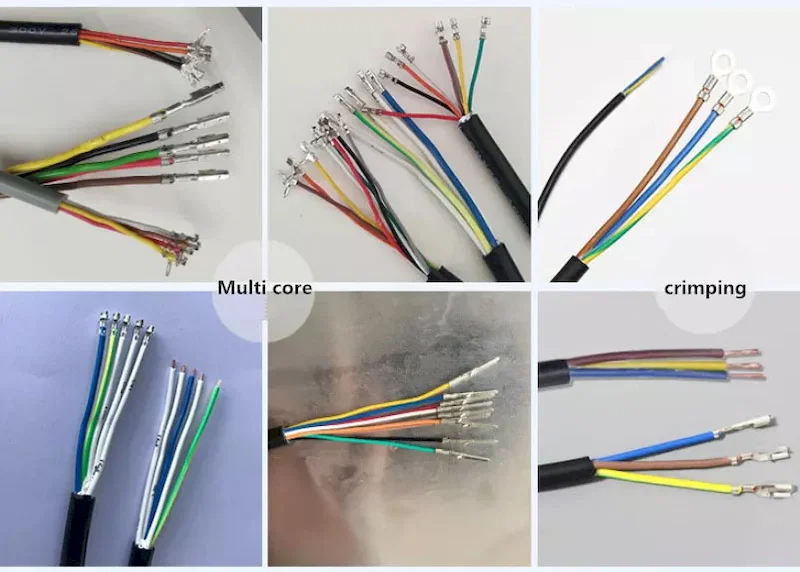

The WPM-32 Sheath Cable Strip and Ferrule Crimp machine is perfect for a wide range of industries requiring efficient and precise processing of multi-core sheathed cables, including:

Automotive wiring harness manufacturing
Consumer electronics assembly
Industrial equipment wiring
Telecommunications cable processing
And more!

Conclusion:

Upgrade your multi-core cable processing with the WPM-32 Multi-core Cablestripping Crimping Machine. Experience unparalleled efficiency, precision, and reliability. This advanced Cable Strip And Crimp Equipment is designed to revolutionize your production line and deliver exceptional results. Contact us today for a quote and discover how the WPM-32 can transform your business.

Net weight 145 kg (319.67 lb)
